ECMS-S Suspended Type Eddy Current Mould Level Sensor

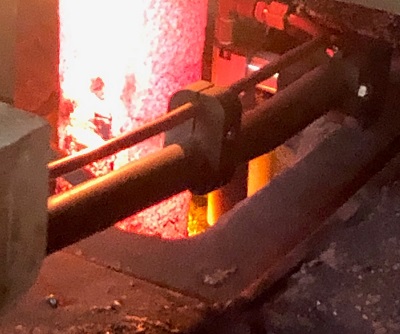

ECMS-S on bloom caster 205x205
TECHNICAL SPECIFICATIONS
+ Slab, Thin Slab, Bloom, Beam Blank casters,
+ Up to 250 mm measuring stroke,
+ Air/Nitrogen Cooled,
+ Very low thermal drift (< 0.05 mm/°C Typical),
+ EMS Compatible,
+ Not influenced by mould flux,
+ Metallic or Ceramic head housing for an optimal protection,
+ Compact sensor arm design,
+ Customized manipulator arm,
+ Ultra fast calibration (< 5sec infinite calibration),
+ Various interface options : Profinet, Ethernet IP, Profibus, Analog …
+ IOT / Industry 4.0 Advanced functionalities
+ Multi-core 1.5Ghz latest generation microprocessor.

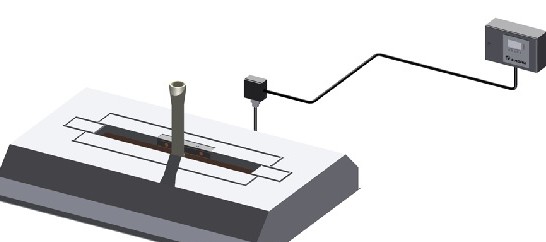

ECMS-S Synoptic

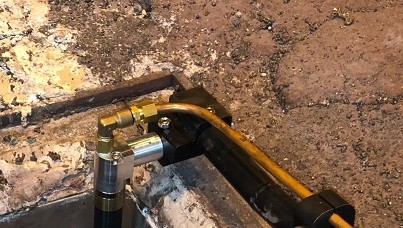

SSH55-N2 Suspended sensor for slab casting

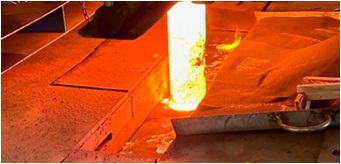

ECMS-M Mould Type Eddy Current Mould Level Sensor

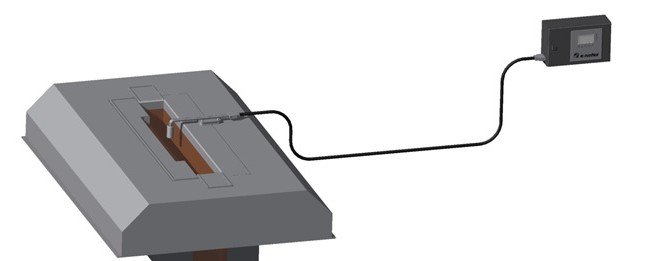

ECMS-M Typical Synoptic
MSH-D Dual sensor for slab casting
TECHNICAL SPECIFICATIONS
+ Slab, Thin Slab, Bloom, Beam Blank casters,
+ Single or Dual Head version,
+ Up to 160/250 mm measuring stroke,
+ Water Cooled,
+ Very low thermal drift,
+ EMS Compatible,
+ Not influenced by mould flux,
+ Ultra fast calibration (< 5sec infinite calibration),
+ Easy mounting,
+ Various interface options : Profinet, Ethernet IP, Profibus, Analog …
+ IOT / Industry 4.0 Advanced functionalities
+ Multi-core 1.5Ghz latest generation microprocessor.

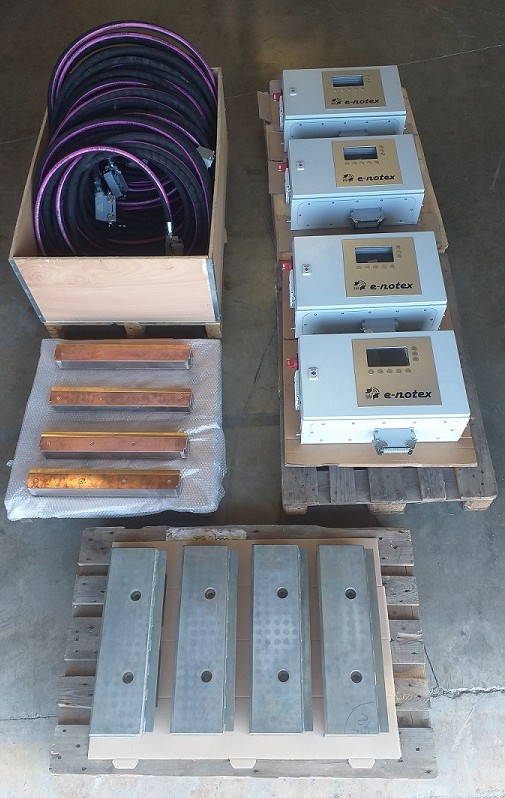

ECMS-M Set for 2x2 Strands Slab Casters - China
FLSS Mould Flux Thickness Sensor System
FLS Laser Dot on Beam Blank and Bloom
TECHNICAL SPECIFICATIONS
+ Slab, Thin Slab, Bloom, Beam Blank, Billet casters,
+ Single, Dual or Scanning versions,
+ Up to 250 mm measuring stroke,
+ Air Cooled,
+ High Accuracy +/- 1 mm,
+ Easy mounting, No Modification of Mould / Water Jacket,
+ Compatible with both radio-active and eddy-current steel level sensor,
+ Safe Location, Not exposed to mould heat radiations,
+ Various interface options : Profinet, Ethernet IP, Profibus, Analog …
+ IOT / Industry 4.0 Advanced functionalities,
+ Multi-core 1.5Ghz latest generation microprocessor.
FLS Sensor Located on casting platform

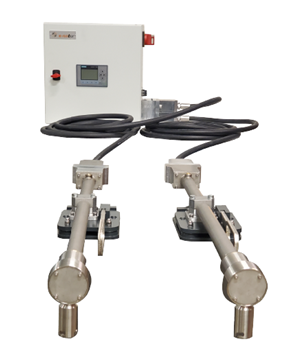

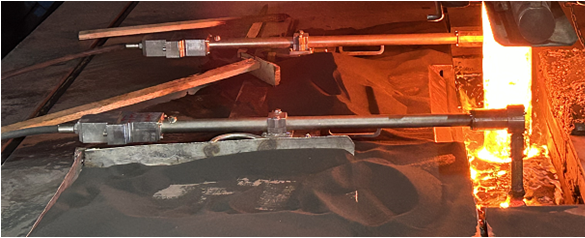

VPS Paddle Type Mould Meniscus Velocity System

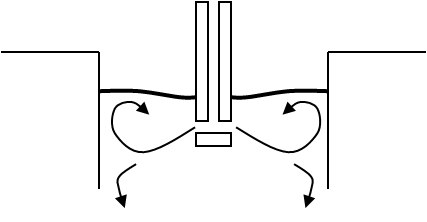

Sub meniscus velocity sensor
A must have tool for high quality steel producers
+ Slab surface quality troubleshooting.
+ SES/SEN Submerged entry nozzle design optimization,
+ Electro magnetic brakes and stirrers tuning,
+ Casting parameters check and optimization.
Easy to use, accurate and durable equipment
+ Rods extended life time (up to 3 hours of casting),
+ Compact holding arms, quick mount with magnets,
+ Easy rods change,
+ Easy calibration with graphical HMI,
+ Portable equipment,
+ Analog outputs and Ethernet communication,
+ Local data logging included,
